RAL2100 Railing System with BAL2036 Baluster Combinations
- SKU:
- RAL2100-SYS-96-BAL2036-21
- Shipping:
- Calculated at Checkout
Description
RAL2100 Railing System with BAL2036 Baluster Combinations
Choose BAL2036-21, BAL2036-22 or BAL2036-29 balusters with 8, 10 or 12 foot RAL2100 rails. Each set includes one RAL2100T top rail, one RAL2100B bottom rail, the matching baluster quantity listed below, and rail pre-drilling. Smooth high-density polyurethane components ship unassembled, primed white and ready to paint.
Use the Choose a Length and Baluster menu to select your complete combination. Each option identifies the rail length, BAL2036 model and included baluster quantity. The selected combination determines the price.
Find your height
Compare the Three BAL2036 Options
All three use the same RAL2100 rail profiles and 4¾-inch square baluster ends. The body height and square end-block heights change with the model. Open a detail image for a closer look.

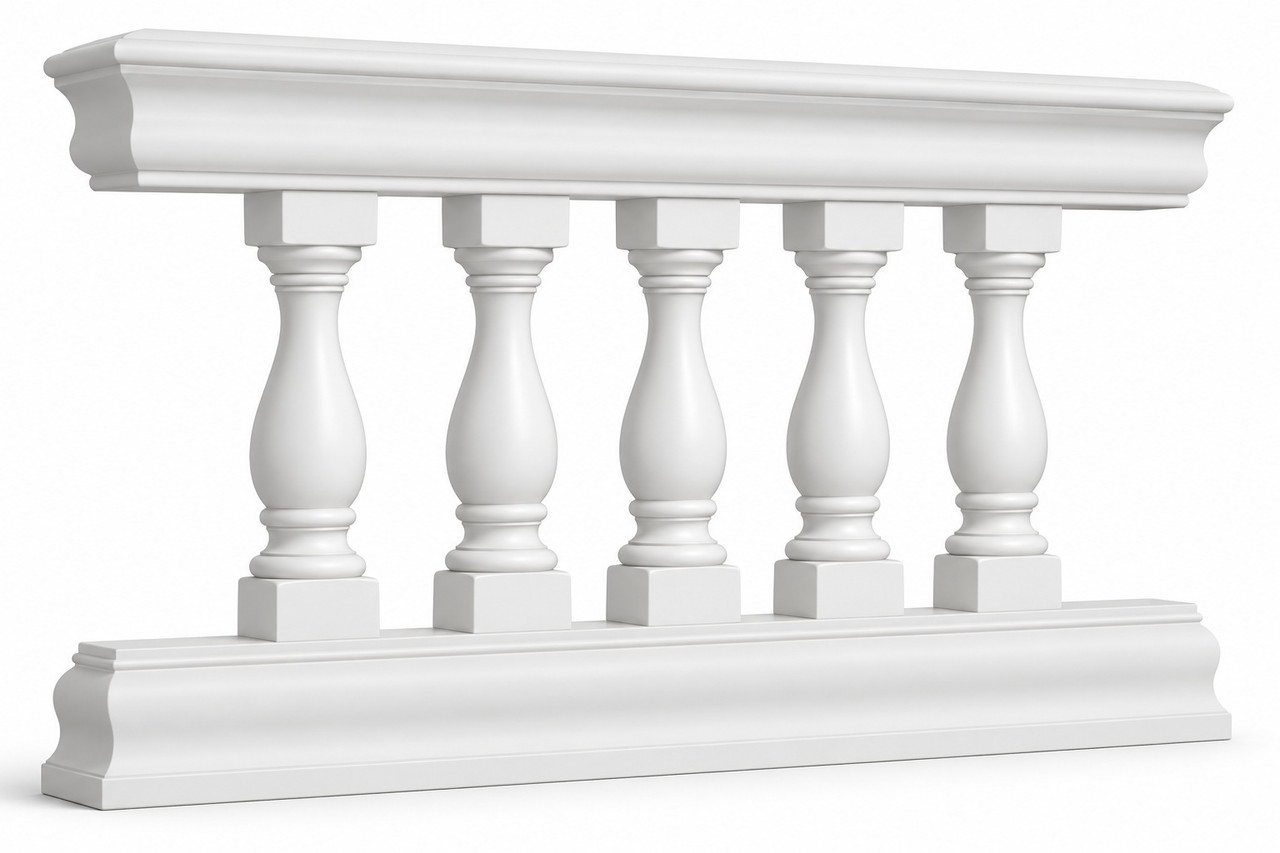

Representative, shortened assemblies are shown. Newel posts are sold separately. The quantity included with your order is listed below and in your selected option.
What assembly height means

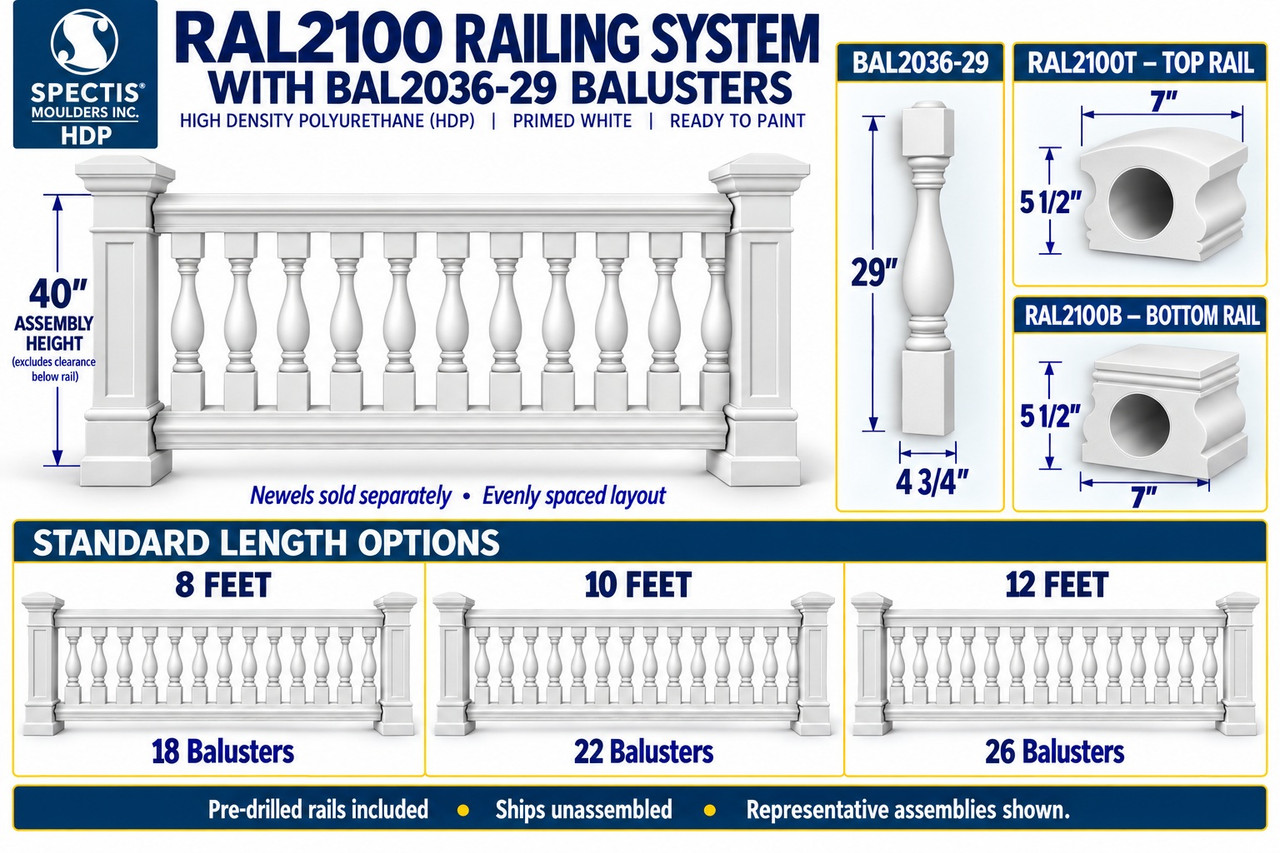

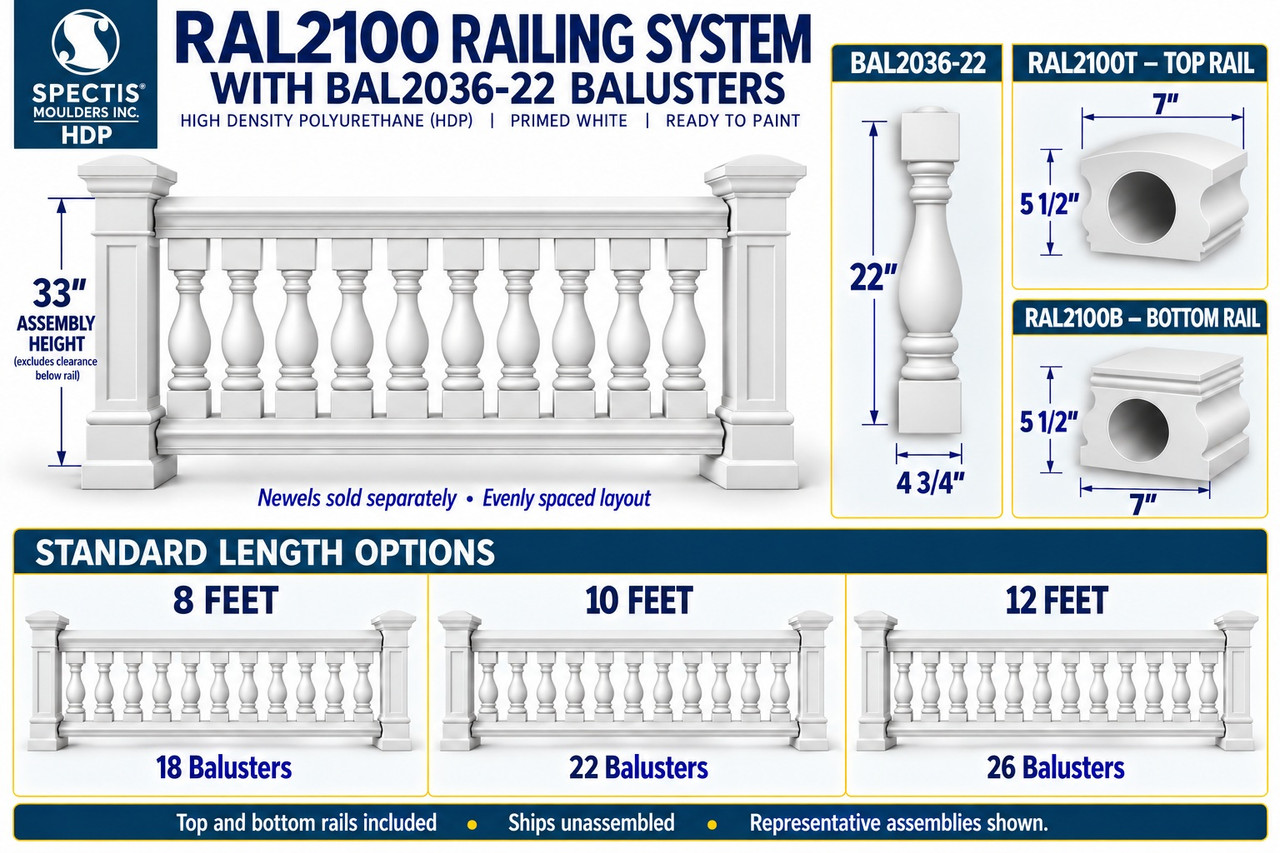

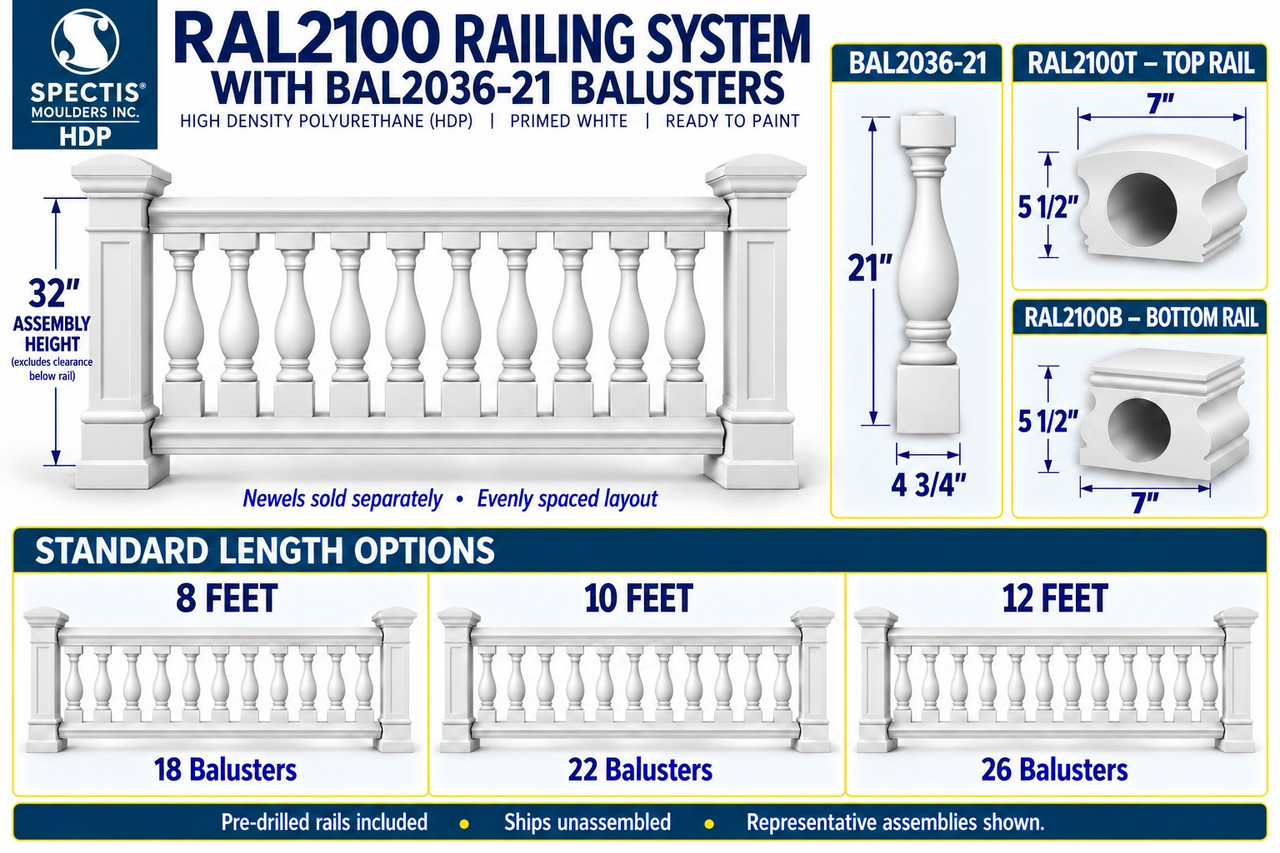

Assembly height is measured from the bottom face of the bottom rail to the top of the top rail. It equals the baluster body height plus 11 inches for the two rails: 32 inches for BAL2036-21, 33 inches for BAL2036-22 and 40 inches for BAL2036-29. It excludes clearance below the bottom rail and the height of newel posts or caps. The projecting mounting pins seat inside the rails and do not add to this dimension.
Baluster choices and included quantities

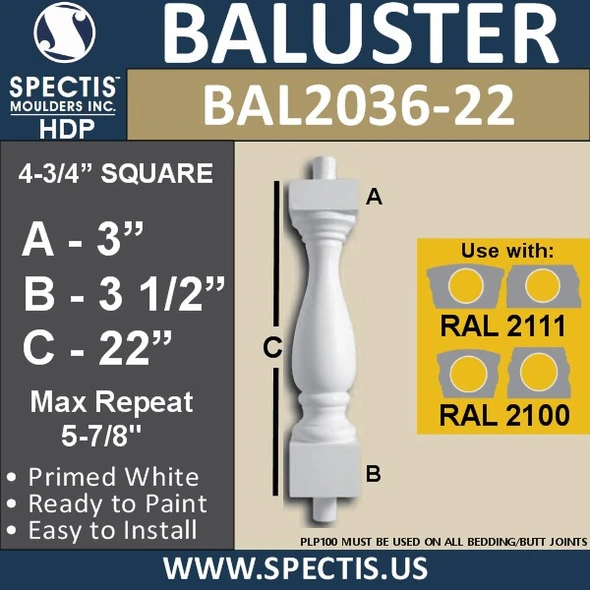

| Baluster model | Body height | Assembly height | Square ends | Balusters: 8 / 10 / 12 ft | Maximum repeat* |
|---|---|---|---|---|---|
| BAL2036-21 | 21 in | 32 in | 4¾ in | 18 / 22 / 26 | 5⅞ in |
| BAL2036-22 | 22 in | 33 in | 4¾ in | 18 / 22 / 26 | 5⅞ in |
| BAL2036-29 | 29 in | 40 in | 4¾ in | 18 / 22 / 26 | 5⅞ in |
*Maximum repeat is the center-to-center spacing shown in the manufacturer's reference drawings. Confirm the actual spacing, end gaps, finished height and local requirements for your project. These dimensions do not certify the complete installation.
What comes with each set
- 8 ft / 96 inches: one 8-foot RAL2100T top rail, one 8-foot RAL2100B bottom rail and 18 balusters in your selected BAL2036 model.
- 10 ft / 120 inches: one 10-foot top rail, one 10-foot bottom rail and 22 matching balusters.
- 12 ft / 144 inches: one 12-foot top rail, one 12-foot bottom rail and 26 matching balusters.
The selected price covers both rails, the listed balusters and rail pre-drilling. Newel posts, caps, mounting hardware, adhesive, fasteners and support blocks are sold separately.
Pre-drilling is included; assembly is completed on site
Rail pre-drilling is included at $6 per baluster for the top-and-bottom rail set. The 8-foot option includes $108 of drilling for 18 balusters; the 10-foot option includes $132 for 22 balusters; the 12-foot option includes $156 for 26 balusters. There is no separate drilling charge to add.
These kits ship unassembled. Rails and balusters are separate, primed components for on-site layout, installation and finishing. Confirm the span, spacing, end gaps, rail supports and fastening details before ordering.
A closer look at the assembled profiles
Rail dimensions and installation

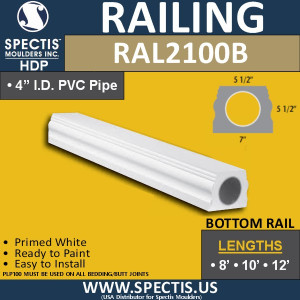

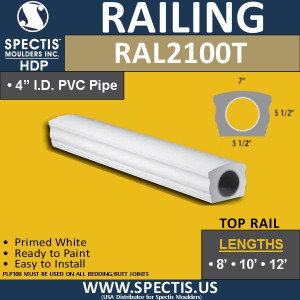

Both rails measure 7 inches at their widest point and 5½ inches high, with 5½-inch-wide baluster seating faces. The 4¾-inch square baluster ends fit within those faces. RAL2100T has a rounded upper crown; RAL2100B has a broad, flat lower foot. Rail lengths are nominal component lengths and do not include newel posts.
Seat the square baluster ends directly against the rails with the mounting pins concealed. Follow the Spectis installation instructions, including ADH100 adhesive at bedding and butt joints and the specified fastening method. Confirm support, mounting and finishing details before installation.
These dimensions and representative illustrations do not certify a complete installation for use as a guard. Your installer must verify finished installation height, openings, support and applicable requirements for the project.
Made to order and freight
Made-to-order products cannot be returned. Long rail sections ship by LTL freight. Delivery requires a verified commercial address accessible to a 52-foot trailer. A home business is residential, and a $275 residential fee applies when the carrier classifies the address as residential. Arrange for someone to receive and inspect the shipment. The current estimate is typically 2–3 weeks from the order date; contact Spectis to confirm production timing and freight arrangements for your project.
Drawings and installation resources
- BAL2036-21 manufacturer drawing
- BAL2036-22 manufacturer drawing
- BAL2036-29 manufacturer drawing
- Spectis balustrade catalog and reference dimensions
- Baluster and handrail installation guide
Works with RAL2100-BAL2036-SYSTEM — complete the look
Spectis parts made to go with this item, from the Spectis catalog and product drawings.
Each part is sold separately. Confirm profiles and dimensions against the drawings before ordering.
Railing set FAQs
Are both rails and all the balusters included?
Yes. Each selection includes one top rail, one bottom rail, the listed 18, 22 or 26 balusters and rail pre-drilling. Newels, caps and installation accessories are sold separately.
Does the kit arrive assembled?
No. Components ship unassembled for on-site installation and finishing. Pre-drilling is included in the selected price.
Do the pictures show the full quantity?
The pictures are shortened representative assemblies so the profiles remain easy to see. Your selected option and the quantities above show what comes with the set.
Questions about the right height or accessories? Call 800-986-1250 or email Spectis with your measurements and the RAL2100 / BAL2036 pairing.
