RAL2111 Railing System with BAL2027 Baluster Combinations
- SKU:
- RAL2111-BAL2027-26-SYSTEM
- Width:
- 7.00 (in)
- Height:
- 144.00 (in)
- Depth:
- 4.00 (in)
- Shipping:
- Calculated at Checkout
Description
RAL2111 Railing System with BAL2027-26 Balusters
Pair the sculpted RAL2111 top and bottom rails with the classic turned profile of BAL2027-26 balusters. This 12-foot component set brings the matching pieces together in one order: one top rail, one bottom rail and 23 balusters, ready for on-site assembly and finishing.
What comes with this set
1 × RAL2111T top rail
A 12-foot rail with a gently crowned top and molded side detail. Maximum profile: 7″ wide × 4″ high.
1 × RAL2111B bottom rail
A matching 12-foot bottom rail with a flat baluster mounting surface and shaped sides. Maximum profile: 7″ wide × 4″ high.

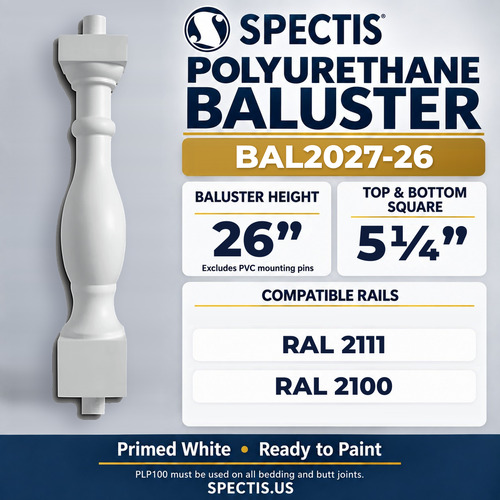

23 × BAL2027-26 balusters
Each baluster has a 26″ body height and 5¼″ square ends. The turned center and square mounting blocks create a coordinated traditional railing.
Complete your installation
Newel posts, adhesive, fasteners and other installation accessories are sold separately. Select these for your mounting conditions and project layout.
Plan the assembled height
The nominal rail-and-baluster assembly is 34″ high: 4″ + 26″ + 4″. Baluster mounting pins fit inside the rails and are excluded from the 26″ body height.
The 34″ dimension excludes clearance below the bottom rail. Your installer should confirm the finished height above the walking surface, post spacing and attachment details for the intended application.
Layout & installation
- The set supplies 23 balusters for the 12-foot rail length. Lay out the actual span between posts before cutting or drilling.
- The BAL2027-26 drawing shows 6 11/16″ on-center spacing. Confirm the final spacing and end gaps with the manufacturer’s instructions and your installer.
- Seat the square baluster ends directly against the rails, with the mounting pins concealed inside the assembly.
- Use ADH100 adhesive on bedding and butt joints, together with the specified fastening method.
- Follow Spectis preparation and finishing instructions; paint the primed components promptly after installation.
Your set at a glance

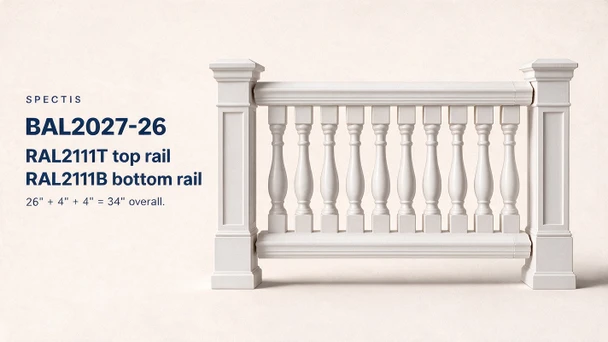

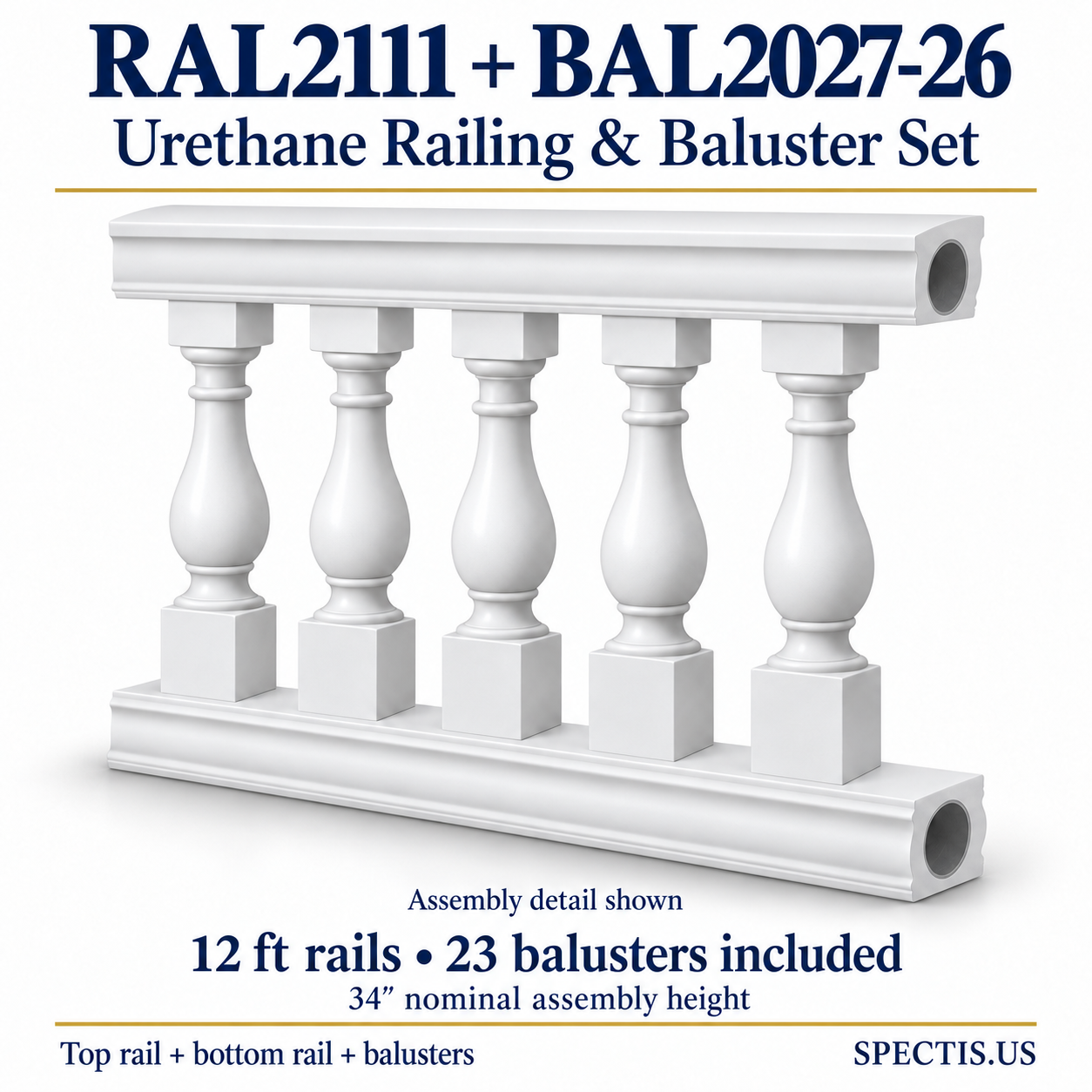

Image shows a shortened assembly detail. The ordered set includes two 12-foot rails and all 23 balusters.
- Top rail
- RAL2111T · 1 included
- Bottom rail
- RAL2111B · 1 included
- Balusters
- BAL2027-26 · 23 included
- Rail length
- 12 ft / 144″ each
- Material
- High-density polyurethane
- Finish
- Smooth, primed white
- Assembly
- Components assembled on site
Plan your order & delivery
Made for your project
Made-to-order products cannot be returned. Confirm the rail length, baluster model, assembled height and accessories before ordering.
Long rails ship freight
This 12-foot set ships by LTL freight. Arrange for someone to receive and inspect the components at delivery.
Check the delivery address
Freight requires a verified commercial address with access for a 52-foot trailer. A home business is residential. A $275 residential fee applies if the carrier classifies the address as residential.
Allow time for production
The current estimate is typically 2–3 weeks from the order date. Contact Spectis to confirm timing for your project.
Component drawings & resources
Works with RAL2111-BAL2027-26-SYSTEM — complete the look
Spectis parts made to go with this item, from the Spectis catalog and product drawings.
Each part is sold separately. Confirm profiles and dimensions against the drawings before ordering.
Railing set FAQs
What is included in the price?
One 12-foot RAL2111T top rail, one 12-foot RAL2111B bottom rail and 23 BAL2027-26 balusters. Newels, adhesive, fasteners and other installation accessories are sold separately.
Does it arrive assembled?
No. The matching components are supplied for on-site layout, assembly and finishing.
Is 34″ the finished height above the floor?
34″ is the nominal combined height of the two rails and the baluster body. Clearance below the bottom rail adds to the installed height. Confirm the complete installation with your installer.
Why does the picture show fewer than 23 balusters?
The close view shows how the components fit together. Your set includes all 23 balusters and both full 12-foot rails.
Can I use a different baluster height?
This set is supplied with BAL2027-26 balusters. Contact Spectis before ordering if you need a different height or component combination.
Are posts included?
Newel posts are sold separately so you can select the appropriate post and mounting arrangement for your project.
Need help planning your railing?
Have your measurements and RAL2111 / BAL2027-26 pairing ready.
