FAC13826L Left Rake Trim — 12/12 Pitch – 97¾″ W × 105⁹⁄₁₆″ H
- SKU:
- FAC13826L
- MPN:
- FAC13826L
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date
- Width:
- 8.00 (in)
- Height:
- 138.25 (in)
- Depth:
- 0.75 (in)
- Shipping:
- Calculated at Checkout
Description

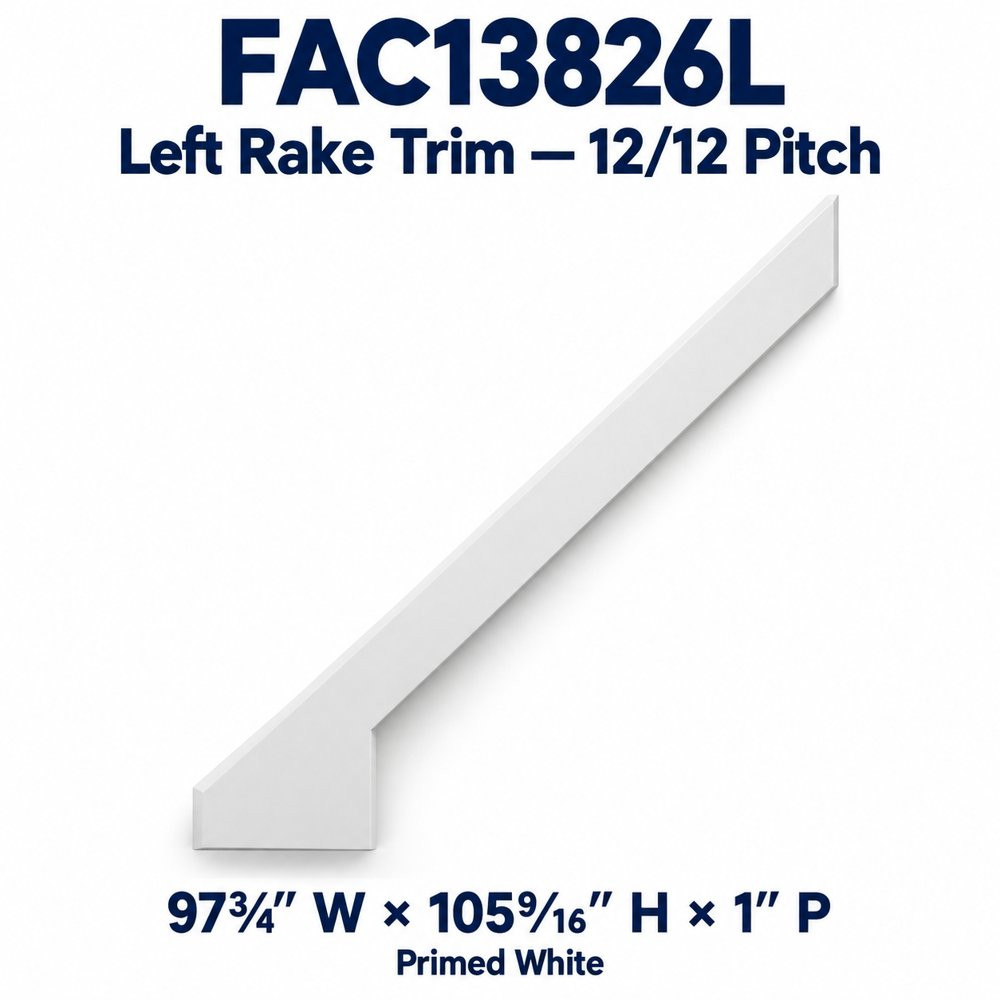

FAC13826L Left Rake Trim — 12/12 Pitch
A smooth left rake-trim piece for a 12/12 roof pitch. Made from high-density polyurethane and supplied primed white for finish painting.
Dimensions & details
At a glance
- Model
- FAC13826L
- Overall size
- 97¾″ W × 105⁹⁄₁₆″ H
- Maximum projection
- 1″
- Pitch
- 12/12
- Sloping outside edge
- 138¼″
- Face width
- 8″
- Lower return width
- 26½″
- Back
- Unfinished per drawing
- Material
- High-density polyurethane
- Finish
- White primer; finish painting required
Size & fit
Check roof pitch, handedness, end cuts and return dimensions against the drawing. Overall width and height are the bounding dimensions of the diagonal piece, not its sloping length. Each left or right piece is sold separately. Handedness and end cuts follow the individual manufacturer drawing; the older product photo was mirrored.
Installation & finishing
Installation
Dry-fit against a clean, prepared surface. Check alignment, clearances and the manufacturer drawing before fastening. Use ADH100 adhesive on all bedding and butt joints, together with the manufacturer’s specified nails or screws for the substrate. Adhesive and fasteners are sold separately.
Finishing
Supplied primed white for finish painting. Prepare joints and fastener holes, then apply compatible finish paint following the manufacturer’s coating instructions. Coordinate exterior joints and weatherproofing with the wall assembly.
Drawings & resources
Shipping & ordering
Order timing
Typically Ships within 2-3 weeks from Order Date. Ships from Canada; confirm current timing before scheduling installation.
Parcel or freight
Smaller pieces typically ship UPS. Large pieces or combined orders may require LTL freight to a verified commercial address accessible to a 52-foot trailer. A home-based business does not qualify as a commercial delivery location.
Residential freight
If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter allows you to correct the address or arrange the extra freight.
Before you order
These products are made to order and are nonreturnable. Confirm the model, dimensions and installation requirements before purchasing.
Common questions
How do I confirm size and fit?
Check roof pitch, handedness, end cuts and return dimensions against the drawing. Overall width and height are the bounding dimensions of the diagonal piece, not its sloping length. Each left or right piece is sold separately. Handedness and end cuts follow the individual manufacturer drawing; the older product photo was mirrored.
Is this load-bearing?
No. This product is decorative polyurethane trim. Provide independent structural support wherever loads must be carried.
Is it ready to paint?
Supplied primed white for finish painting. Prepare joints and fastener holes, then apply compatible finish paint following the manufacturer’s coating instructions. Coordinate exterior joints and weatherproofing with the wall assembly.
How is it installed?
Dry-fit against a clean, prepared surface. Check alignment, clearances and the manufacturer drawing before fastening. Use ADH100 adhesive on all bedding and butt joints, together with the manufacturer’s specified nails or screws for the substrate. Adhesive and fasteners are sold separately.
Can I return it?
Made-to-order products are nonreturnable. Confirm the size, profile and installation requirements before ordering.
