MD1025 Profiled Head Trim — Polyurethane — 1⅝″ P × 5½″ H × 12′ L
- SKU:
- MD1025
- MPN:
- MD1025
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date and must be shipped to a COMMERCIAL BUSINESS ADDRESS.
- Width:
- 144.00 (in)
- Height:
- 5.50 (in)
- Depth:
- 1.63 (in)
- Shipping:
- Calculated at Checkout
Description

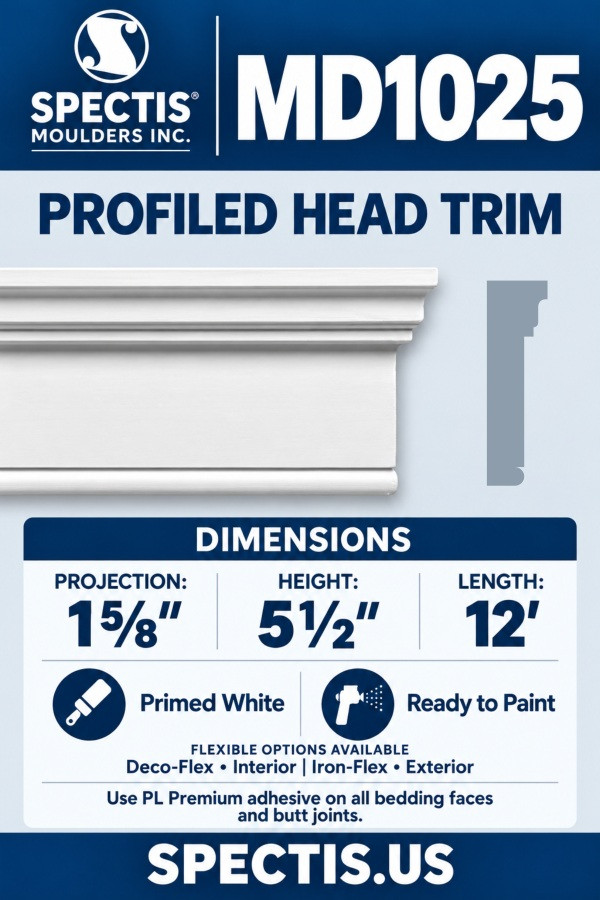

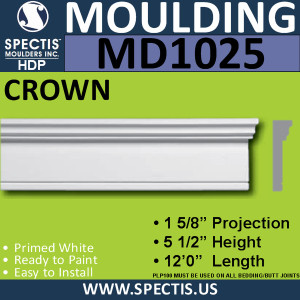

MD1025 Profiled Head Trim
MD1025 profiled head trim combines a stepped curved upper cap, a broad flat face and a small rounded lower bead. Its 5½-inch height creates a defined horizontal finish above doors, windows or built-up trim compositions. The maximum projection is 1⅝ inches, with a 1-inch body thickness. Each 12-foot length is made from high-density polyurethane and arrives factory-primed white, ready for finishing.
Plan your order & delivery
Made for your project
MD1025 is made to order and cannot be returned. Confirm the profile, dimensions and quantity before purchasing. A sample-cut option is available above.
Ships by freight
The 12-foot lengths travel in a crate by LTL truck freight. Full-length pieces cannot ship by standard parcel service.
Check the delivery address
Use a verified commercial address with access for a 52-foot trailer. A home business is considered residential. If the carrier classifies the address as residential, a $275 fee applies.
Allow time for production
The current estimate is typically 2–3 weeks from the order date. Contact us before ordering if your project has a specific deadline.
Check the fit
Projection is the maximum distance from the mounting surface. Height is the overall vertical dimension of the profile.
The CAD divides the 5½″ overall height into a 1½″ upper detail and a 4″ lower section. The main body is 1″ thick and the cap projects a maximum of 1⅝″. Check adjoining casing, returns and mounting surfaces so the top cap and lower bead meet adjacent pieces cleanly.
Installation & finishing
- Fit the moulding to a clean, solid mounting surface. Do not install over wallpaper.
- Cut and fasten with standard woodworking tools. Use PL Premium adhesive on every bedding face and butt joint, with the recommended screws or finish nails.
- Finish the factory-primed surface according to Spectis instructions and paint promptly after installation. Fasteners and finish are sold separately.

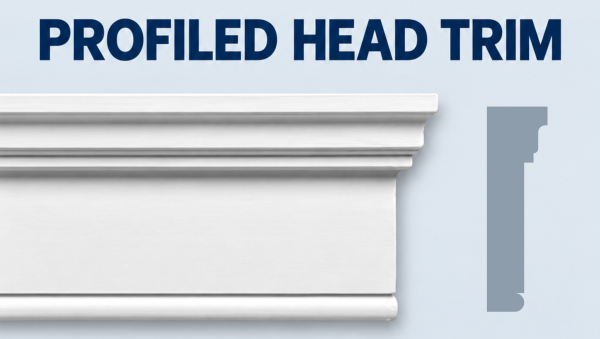

MD1025 at a glance
- Profile
- Stepped curved upper cap above a broad flat face and rounded lower bead
- Material
- High-density polyurethane
- Finish
- Factory-primed white
- Use
- Interior and exterior trim with the standard material option
- Curved work
- Deco-Flex for interior use; Iron-Flex for exterior use. Confirm the required curve before ordering.
- Production
- Made to order
- Delivery
- Crated LTL freight for full-length pieces
Drawings & resources
Check the exact profile and dimensions in the drawing. Both PDFs open in a separate tab.
MD1025 FAQs
What is MD1025 and what size is it?
MD1025 is profiled head trim made from high-density polyurethane. It measures 1⅝″ in maximum projection, 5½″ in height and 12′ in length. Stepped curved upper cap above a broad flat face and rounded lower bead. Check the PDF drawing for the complete profile.
Can I use it indoors and outdoors?
Standard MD1025 is suitable for interior and exterior trim. Deco-Flex for interior use; Iron-Flex for exterior use. Confirm the required curve before ordering.
Does it need painting?
MD1025 arrives factory-primed and ready for finishing. No extra primer or sanding is normally needed before painting. Follow the Spectis finishing instructions and paint promptly after installation.
Which adhesive should I use?
Use PL Premium (PLP100) on every bedding face and butt joint, along with the recommended fasteners. Follow the Spectis moulding installation instructions.
How does a 12-foot length ship?
MD1025 ships by LTL freight in a crate. Use a verified commercial address that can accommodate a 52-foot trailer. A home office is still considered residential. Our shipping policy lists a $275 residential fee if the carrier classifies the address as a residence; delivery arrangements should be confirmed before ordering.
When will my order ship?
MD1025 is made to order. The estimated lead time is typically 2–3 weeks from the order date. Confirm timing with Spectis for your project.
Can I return it?
Made-to-order products cannot be returned. Check the dimensions and PDF drawing before purchasing. Use the sample-cut option on the product page if you want to review the profile first.
What if my order arrives damaged?
Inspect the shipment at delivery, report damage to the carrier immediately, and email sales@spectis.us the same day. Our shipping policy requires notification within 24 hours to qualify items for a claim.
Is there a warranty?
The Spectis warranty covers defects in materials and workmanship for five years for the original end user when the product is used and installed under recommended conditions. If it is not painted immediately after installation, the warranty period is one year. Read the full Spectis warranty for terms.
Need help checking the fit?
Have your measurements and part number MD1025 ready.
Builders, designers, and customers: if Spectis products or the installation steps are modified, you agree to indemnify, defend, and hold harmless Veritas Products LLC, veritasproducts.com, and spectis.us from any claimed loss or damage, regardless of other instructions.
