RAL2100 Railing System with BAL2027 Baluster Combinations

(No reviews yet) Write a Review
SKU:
RAL2100-BAL2027-SYSTEM
Width:
7.00 (in)
Height:
33.00 (in)
Depth:
96.00 (in)
Shipping:
Calculated at Checkout
  • RAL2100 with BAL2027-22 — assembly height, component dimensions and 8, 10, 12 foot options
  • Representative close-up of primed white BAL2027-22 balusters assembled with RAL2100T top rail and RAL2100B bottom rail in the custom wide-spacing configuration.
  • RAL2100 with BAL2027-20 — assembly height, component dimensions and 8, 10, 12 foot options
  • RAL2100 railing system with BAL2027-22 balusters, 9-inch on-center spacing; choose 8, 10 or 12 feet; representative assembly
  • RAL2100 with BAL2221-19: 30-inch assembly, 19-inch baluster body, 4.8125-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2211-20: 31-inch assembly, 20-inch baluster body, 4.25-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2090-15: 26-inch assembly, 15-inch baluster body, 5-inch square ends; 8/10/12 ft sections with 18/22/26 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2052-18: 29-inch assembly, 18-inch baluster body, 4.25-inch square ends; 8/10/12 ft sections with 18/22/26 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2026-16: 27-inch assembly, 16-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2000-16: 27-inch assembly, 16-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2000-22: 33-inch assembly, 22-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2000-25 balusters: 36-inch assembly height, 25-inch baluster body, 4.5-inch square ends, 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.

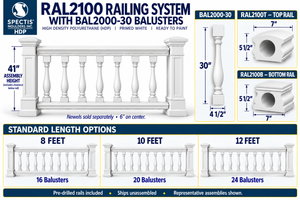

  • RAL2100 with BAL2000-30: 41-inch assembly, 30-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2000-30EXT36: 47-inch assembly, 36-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.

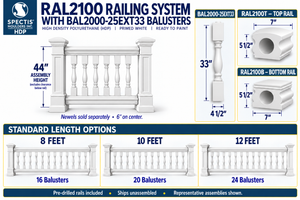

  • RAL2100 with BAL2000-25EXT33: 44-inch assembly, 33-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2005-20EXT26: 37.5-inch assembly, 26.5-inch baluster body, 4.5-inch square ends; 8/10/12 ft sections with 16/20/24 balusters and pre-drilling included. Newels sold separately.
  • RAL2100 with BAL2036-22: 33-inch assembly, 22-inch baluster body, 4.75-inch square ends; 8/10/12 ft sections with 18/22/26 balusters and pre-drilling included. Newels sold separately.
$2,046.00 - $4,634.00

Sold Out

Frequently bought together:

Description

RAL2100 Railing System: Choose Your Baluster and Length

Choose from 15 baluster model-and-height combinations in 8, 10 or 12 foot rail lengths. Each set includes one RAL2100T top rail, one RAL2100B bottom rail, the matching balusters listed below, and rail pre-drilling. Components ship unassembled, primed white and ready to paint.

First choose the baluster model and assembly height, then your section length. The selected option determines the baluster profile, quantity and price.

Find your look

Choose Your Railing Style

Compare four baluster looks, then choose your model and 8, 10 or 12 ft section length in the option menu. All use the same RAL2100 top and bottom rails.

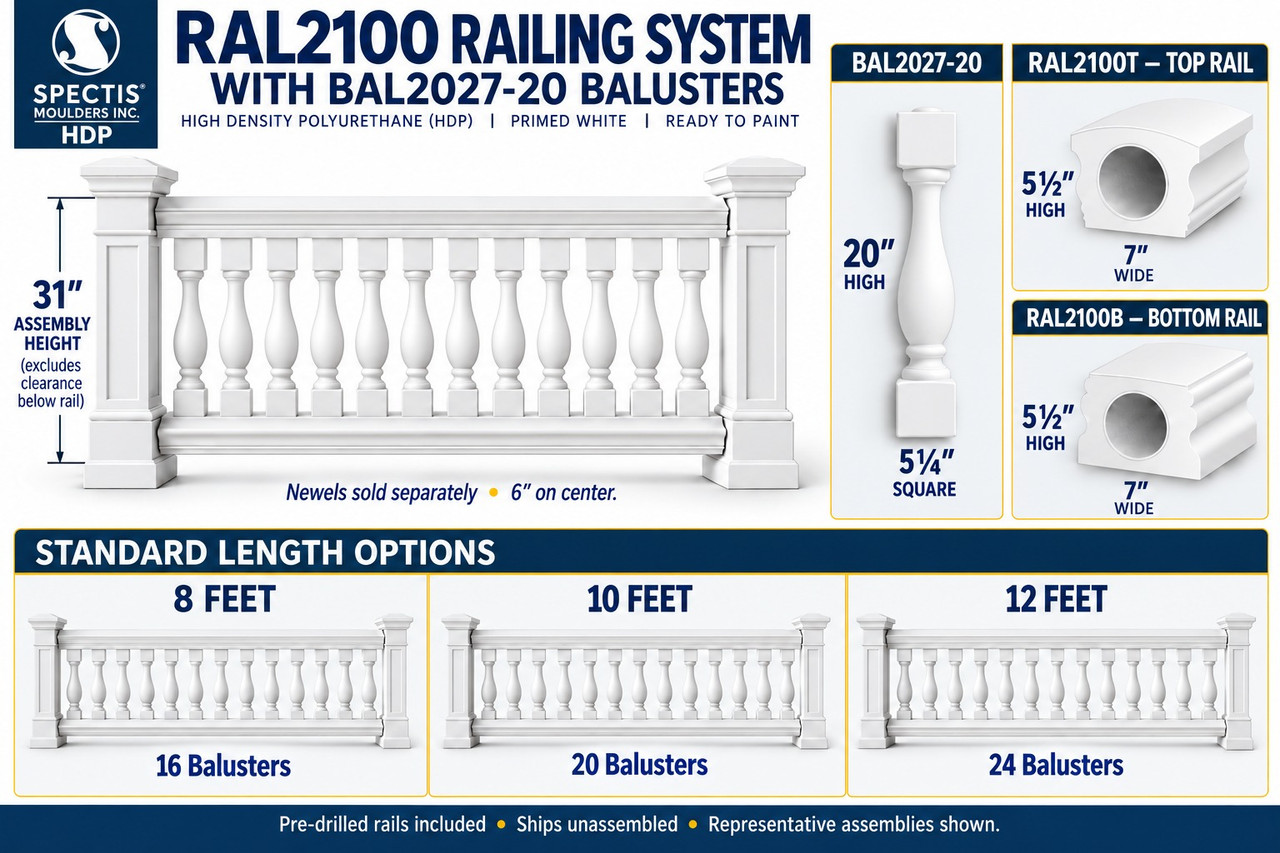

Representative RAL2100 assembly with BAL2027-20 balusters; newel posts sold separately

Sweeping curves

BAL2027-20

A smooth, rounded profile with substantial square ends.

31 in assembly height
5¼ in square baluster ends · 6 in on center

Find BAL2027-20 in options ↑

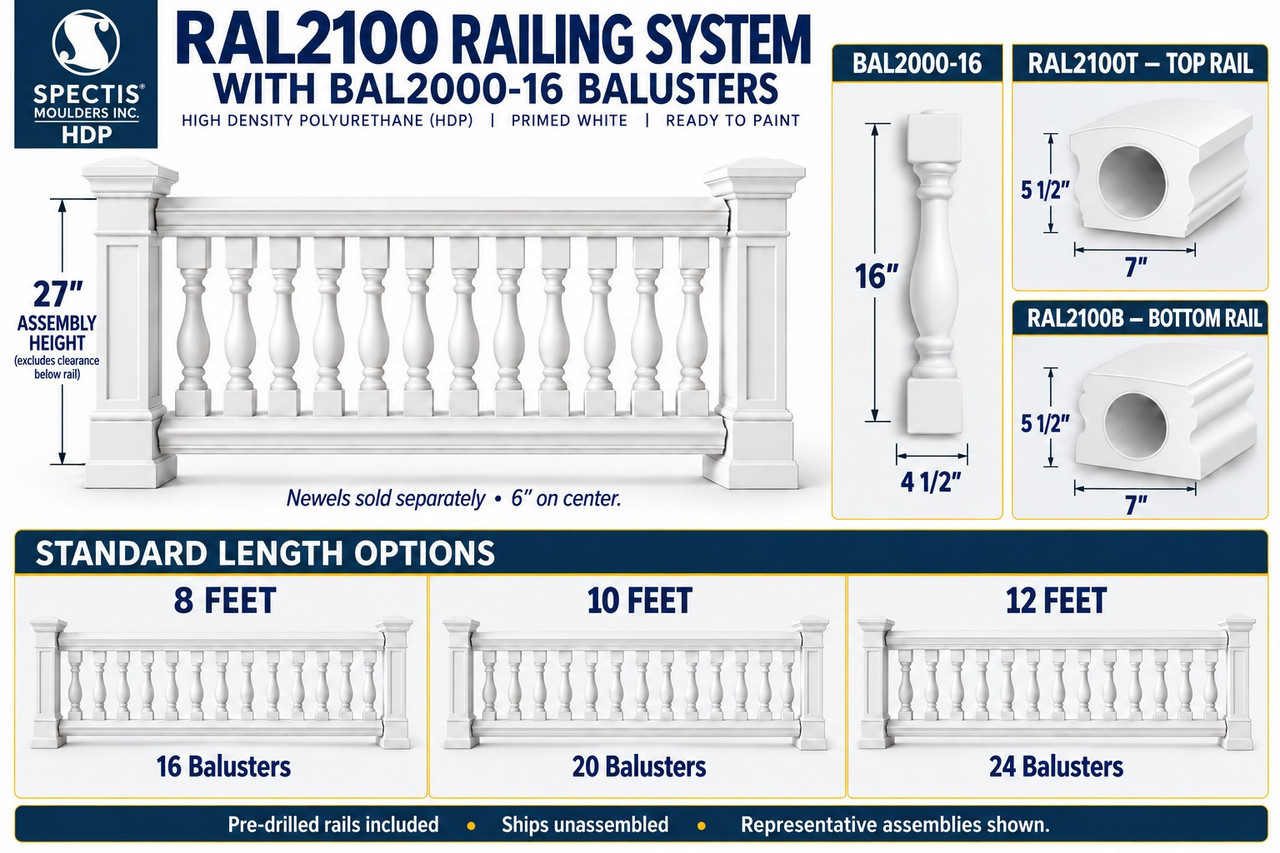

Representative RAL2100 assembly with BAL2000-16 balusters; newel posts sold separately

Classic turned

BAL2000-16

A traditional curved profile with a more compact overall height.

27 in assembly height
4½ in square baluster ends · 6 in on center

Find BAL2000-16 in options ↑

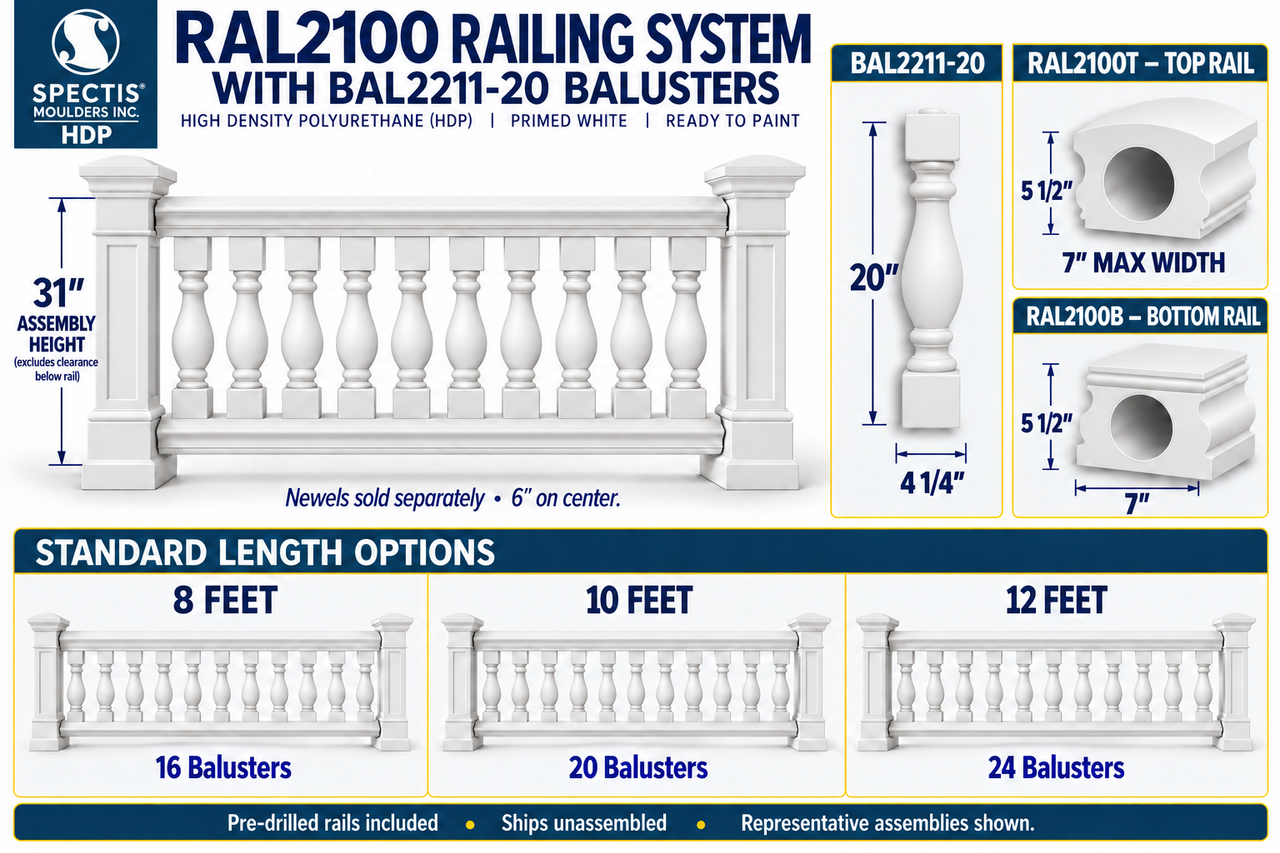

Representative RAL2100 assembly with BAL2211-20 balusters; newel posts sold separately

Sculpted curves

BAL2211-20

A rounded lower body accented by distinct collars and square ends.

31 in assembly height
4¼ in square baluster ends · 6 in on center

Find BAL2211-20 in options ↑

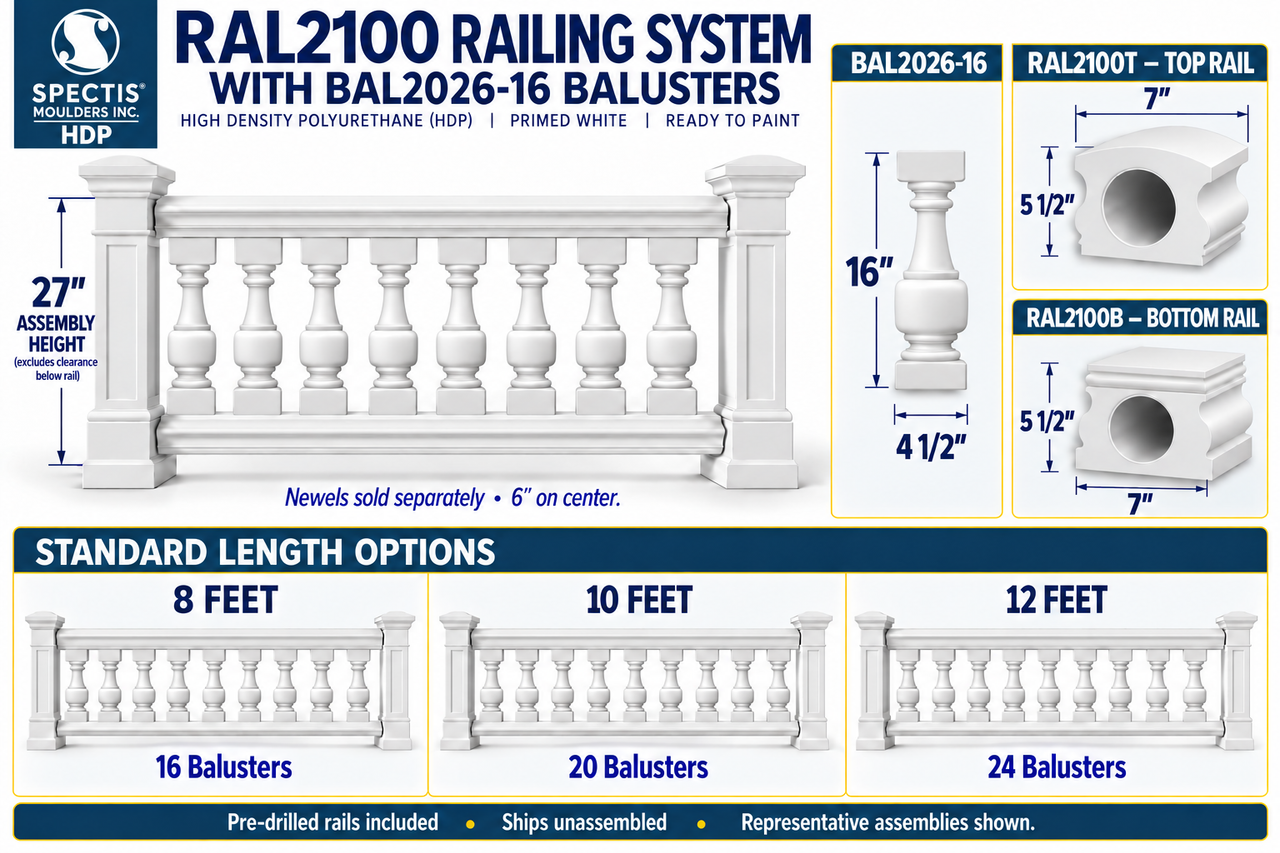

Representative RAL2100 assembly with BAL2026-16 balusters; newel posts sold separately

Rounded drum

BAL2026-16

A compact silhouette with a rounded drum and tapered upper neck.

27 in assembly height
4½ in square baluster ends · 6 in on center

Find BAL2026-16 in options ↑

Representative railing details are shown. Newel posts are sold separately. Sets ship unassembled. Assembly height excludes clearance below the bottom rail; review the installation notes below.

Need a different height? The full list below includes 15 model-and-height combinations, including additional BAL2000 heights. Match the exact model in the option menu, then choose your section length. The links above take you to that menu; they do not change your selection.

A note about the custom 9-inch spacing

The BAL2027-22 option retains its custom 9-inch-on-center layout. That spacing exceeds the manufacturer's listed 6 11/16-inch maximum repeat for this baluster and is not presented as a code-compliant guard assembly. Confirm the intended use, finished installation height, openings and local requirements for your project before ordering.

What assembly height means

Assembly height is measured from the bottom face of the bottom rail to the top of the top rail. It equals the baluster body height plus 11 inches for the two rails. It excludes clearance below the bottom rail and the height of newel posts or caps. Baluster mounting pins seat inside the rails and do not add to this dimension.

Baluster choices and included quantities

Baluster modelBody heightAssembly heightSquare endsBalusters: 8 / 10 / 12 ftLayout
BAL2027-2020 in31 in5¼ in16/20/246 in O.C.
BAL2027-2222 in33 in5¼ in10/13/169 in O.C. (custom)
BAL2221-1919 in30 in4 13/16 in16/20/246 in O.C.
BAL2211-2020 in31 in4¼ in16/20/246 in O.C.
BAL2090-1515 in26 in5 in18/22/26Evenly distributed*
BAL2052-1818 in29 in4¼ in18/22/26Evenly distributed*
BAL2026-1616 in27 in4½ in16/20/246 in O.C.
BAL2000-1616 in27 in4½ in16/20/246 in O.C.
BAL2000-2222 in33 in4½ in16/20/246 in O.C.
BAL2000-2525 in36 in4½ in16/20/246 in O.C.
BAL2000-3030 in41 in4½ in16/20/246 in O.C.
BAL2000-30EXT3636 in47 in4½ in16/20/246 in O.C.
BAL2000-25EXT3333 in44 in4½ in16/20/246 in O.C.
BAL2005-20EXT2626½ in37½ in4½ in16/20/246 in O.C.
BAL2036-2222 in33 in4¾ in18/22/26Evenly distributed*

*BAL2090-15, BAL2052-18 and BAL2036-22 use 18, 22 and 26 evenly distributed balusters. Center-to-center spacing is approximately 5.333, 5.455 and 5.538 inches for 8, 10 and 12 foot rails. The first and last centers are half that distance from the rail ends.

Pre-drilling is included

The selected price includes pre-drilling at $6 per baluster for the rail set. There is no separate drilling charge to add. Sets with 16 / 20 / 24 balusters include $96 / $120 / $144 of drilling; sets with 18 / 22 / 26 include $108 / $132 / $156. The custom BAL2027-22 set includes $60 / $78 / $96 for 10 / 13 / 16 balusters.

Rail dimensions and installation

Both rails measure 7 inches at their widest point and 5½ inches high, with 5½-inch-wide baluster seating faces. The listed baluster ends fit within those faces. Rail lengths are nominal component lengths; newel posts are not included in that length.

Newels, caps, mounting hardware, adhesive and support blocks are sold separately. Follow Spectis installation instructions, including the specified adhesive at bedding and butt joints. Confirm the complete installation layout, support and fastening details before ordering or cutting. These product dimensions and illustrations do not certify a complete installation for use as a guard.

Illustrations show shortened representative assemblies. Included baluster quantities are the numbers listed for your selected option.

Made to order and freight

Made-to-order products cannot be returned. Long rail sections ship by LTL freight. Delivery requires a verified commercial address accessible to a 52-foot trailer. A $275 residential fee applies when the carrier classifies the address as residential. Contact us for production timing and freight arrangements.
