CLM200-16-10S Fluted Tapered Structural Column – 16″ bottom × 14″ top × 120″ overall
- SKU:
- CLM200-16-10S
- MPN:
- CLM200-16-10S
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date to a COMMERCIAL ADDRESS ONLY
- Width:
- 16.00 (in)
- Height:
- 120.00 (in)
- Depth:
- 16.00 (in)
- Shipping:
- Calculated at Checkout
Description
CLM200-16-10S Fluted Tapered Structural Column
The structural version of the fluted tapered column combines a molded urethane exterior with an internal support pipe and mounting flanges. Supplied primed white for painting. Caps and bases are sold separately.

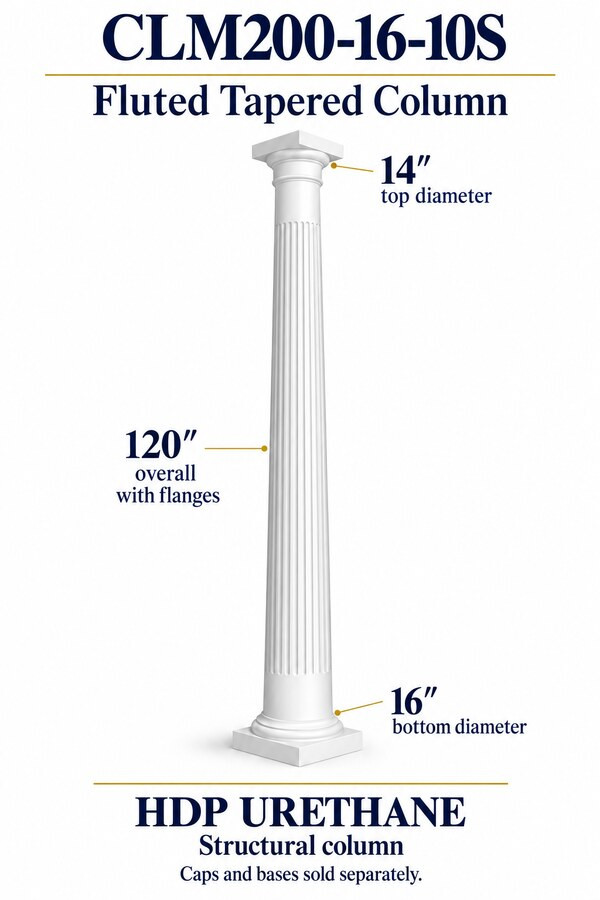

Product illustration. Use the linked drawing for dimensions and assembly details. Caps, bases and optional neck rings are sold separately.
CLM200-16-10S at a glance
- Profile
- Fluted Tapered Structural Column
- Dimensions
- 16″ bottom × 14″ top × 120″ overall
- Material
- HDP urethane with internal metal support
- Finish
- Primed white; paint after installation
- Use
- Structural model; confirm the required assembly and load for your project.
- Included
- This listing is for the column shaft. Caps, bases and optional neck rings are sold separately.
- Production
- Made to order
Plan your order & delivery
Made for your project
CLM200-16-10S is made to order and cannot be returned. Confirm the profile, dimensions, configuration and quantity before purchasing.
LTL freight only
Columns and porch posts ship LTL freight only.
Delivery address
LTL freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify. If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter lets you correct the address or pay the extra freight.
How long
The order goes to the Spectis plant in Manitoba the same day. Shipping from Canada typically takes two to three weeks.
Check at delivery
Inspect the shipment on arrival and notify the carrier immediately of damage. Email sales@spectis.us the same day. Report damage within 24 hours for claim qualification.
Check the fit
The exterior tapers from a 16″ bottom to a 14″ top. The model-specific drawing identifies 120″ overall height with flanges, rather than 120″ of urethane shaft. Select caps and bases separately for the end diameters and confirm the complete assembly before ordering.
The drawing specifies an internal steel support pipe and top/bottom mounting flanges shipped loose. Confirm the current support assembly, required load and fastening details with Spectis for your installation. Structural columns must not be cut lengthwise or split to wrap an existing post.
Installation & finishing
- Confirm the bearing points, internal support assembly, mounting hardware and required load with Spectis before installation. Follow the structural model's instructions.
- Use PL Premium adhesive (PLP100) on every bedding face and butt joint.
- Follow the manufacturer instructions for fastening, joints and finishing. Paint after installation. Adhesive, finish and additional installation fasteners are sold separately.
Use the model-specific drawing below and confirm the current structural installation instructions with Spectis.
Drawings & resources
Check the model-specific drawing before ordering. PDFs open in a separate tab.
Spectis catalogueCLM200-16-10S FAQs
What size is CLM200-16-10S?
The exterior tapers from a 16″ bottom to a 14″ top. The model-specific drawing identifies 120″ overall height with flanges, rather than 120″ of urethane shaft. Select caps and bases separately for the end diameters and confirm the complete assembly before ordering.
Is this a structural model?
Structural model; confirm the required assembly and load for your project.
What is included?
This listing is for the column shaft. Caps, bases and optional neck rings are sold separately.
What is it made of?
High-density polyurethane exterior with an internal metal support assembly. See the model-specific drawing and confirm the current hardware configuration when ordering.
What should I check before ordering?
The drawing specifies an internal steel support pipe and top/bottom mounting flanges shipped loose. Confirm the current support assembly, required load and fastening details with Spectis for your installation. Structural columns must not be cut lengthwise or split to wrap an existing post.
Which adhesive and finish should I use?
Use PL Premium (PLP100) on every bedding face and butt joint. Follow the manufacturer's fastening and finishing instructions, and paint after installation. Adhesive, finish and additional installation fasteners are sold separately.
Can I return it?
No. This product is made to order. Confirm the profile, dimensions, configuration and quantity before purchasing.
How does it ship?
Columns and porch posts ship LTL freight only. LTL freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify. If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter lets you correct the address or pay the extra freight. Orders go to the Spectis plant in Manitoba the same day. Shipping from Canada typically takes two to three weeks.
What if it arrives damaged?
Inspect at delivery and notify the carrier immediately. Email sales@spectis.us the same day. If Spectis is not notified within 24 hours, the items cannot qualify for a claim.
Need help checking the fit?
Have your measurements and part number CLM200-16-10S ready. Weekdays, 8 a.m. to 6 p.m. Eastern.
Builders, designers, and customers: if Spectis products or the installation steps are modified, you agree to indemnify, defend, and hold harmless Veritas Products LLC, veritasproducts.com, and spectis.us from any claimed loss or damage, regardless of other instructions.
