KIN02-W Newel Post Anchor Kit for Wood – 4¼″ Channel

(No reviews yet) Write a Review
SKU:
KIN02-W
MPN:
KIN02-W
Condition:
New
Availability:
Typically Ships within 2-3 weeks from Order Date
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
  • KIN02-W Newel Post Anchor Kit for Wood – 4¼″ Channel — product illustration
  • KIN02-W Newel Post Anchor Kit for Wood – 4¼″ C-Channel
  • Newel Post Anchor Hardware Kit for Wood KIN 02-W
Now: $104.00
Was: $164.00

Sold Out

Frequently bought together:

Description

SPECTIS INSTALLATION HARDWARE

KIN02-W Newel Post Anchor Kit for Wood – 4¼″ Channel

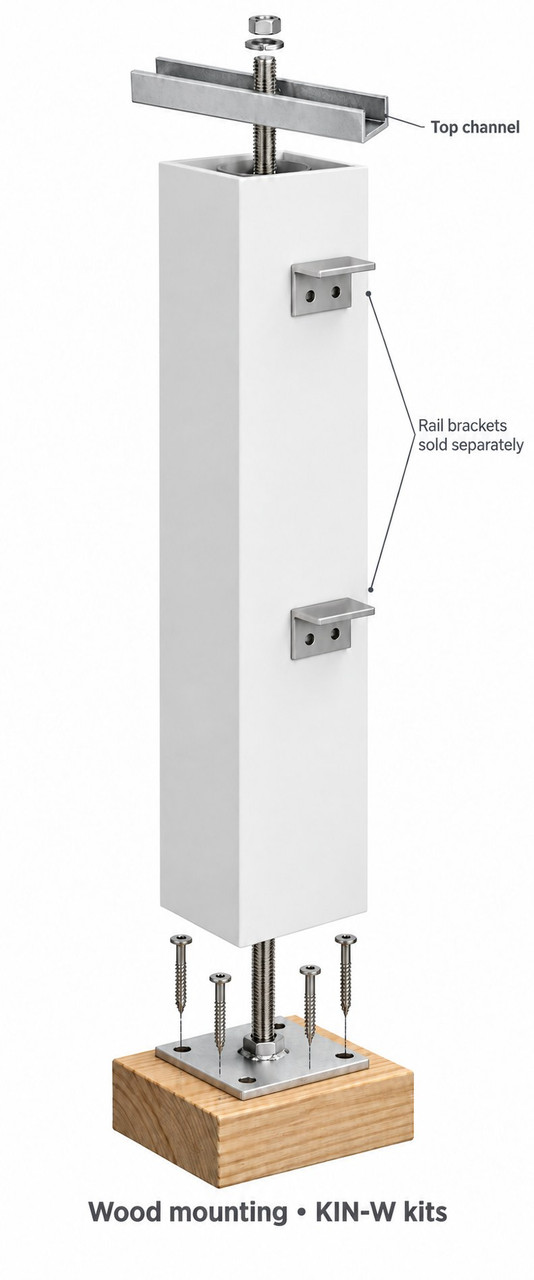

The Spectis KIN02-W anchor kit secures a compatible newel post to a wood mounting surface. It combines a 4¼-inch C-channel with a 52-inch threaded rod and a floor flange with wood screws.

SURFACEWoodPost-to-base anchoring
CHANNEL4¼″C-channel length
ROD LENGTH52″Threaded rod
ROD DIAMETER½″Match the post drawing

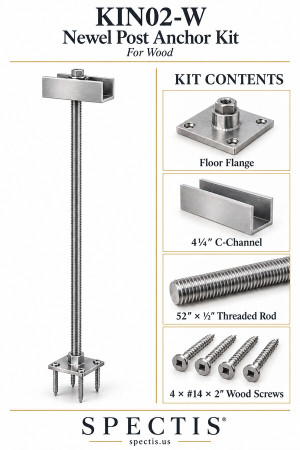

Kit contents & dimensions

ComponentQty.Specification
Floor flange12½″ square base
C-channel14¼″ L × 2″ W × 1″ H
Threaded rod152″ L × ½″ diameter
Wood screws4#14 × 2″

Specifications and quantities are from the KIN02-W manufacturer drawing. Product illustrations are for reference; use the drawing to confirm the part.

Match the hardware to your system

Compatible newel posts

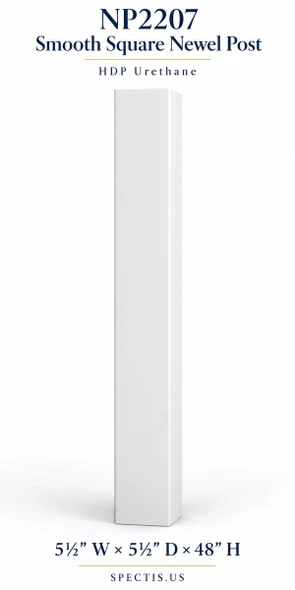

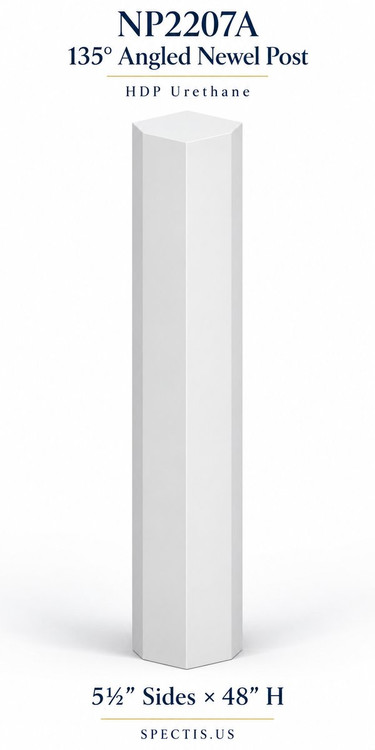

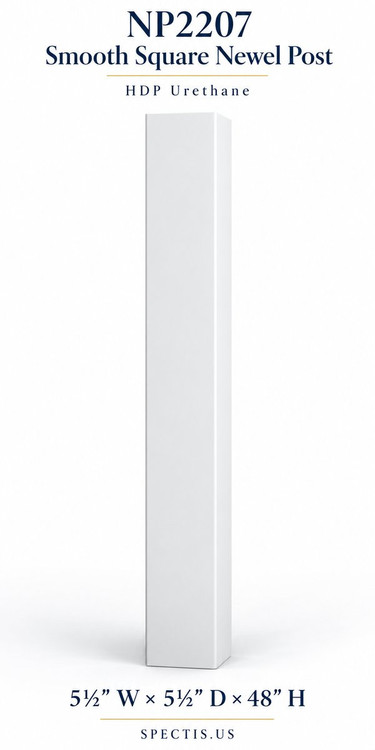

Compatible post models: NP2207, NP2207A. Confirm the exact model and current post drawing before ordering.

Choose the correct version

This is the wood mounting version. Check the specified kit number and channel size against the newel drawing; channel length alone does not establish compatibility.

For concrete mounting, see KIN02-C. Rail-to-post connections use a separate KIR bracket kit selected for the rail profile.

Installation planning

Plan the connection

Follow the Spectis instructions for the complete railing assembly and the mounting substrate. Confirm hardware placement, kit quantities, and any additional project-specific fasteners before ordering.

Complete the assembly

Order rails, balusters, newels, caps, and adhesive separately. Use the specified adhesive on bedding and butt joints in the surrounding Spectis components. Read the handrail installation notes.

Drawings & resources

KIN02-W manufacturer drawingComponent dimensions and bill of materialsPDFSpectis Catalogue Volume 8Hardware compatibility — printed page 35PDF

Shipping

Hardware-only orders

A hardware kit on its own typically ships UPS. Shipping from Canada typically takes two to three weeks; confirm timing for your order.

Orders with long rails

Orders containing long rails ship LTL freight. Freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify.

Residential freight

If the carrier classifies the address as residential, a $275 fee is added. You receive a confirmation letter so you can correct the address or pay the extra freight.

Check the delivery

Inspect the shipment when it arrives and report damage to the carrier. Email sales@spectis.us the same day; the store requires notice within 24 hours for a damage claim.

Works with KIN02-W — complete the look

Spectis parts made to go with this item, from the Spectis catalog and product drawings.

Each part is sold separately. Confirm profiles and dimensions against the drawings before ordering.

Common questions

What is included?

The kit includes the hardware and quantities listed in the table above. Rails, balusters, newel posts, caps, and adhesive are sold separately.

How do I choose the correct kit?

Match the KIN number to the newel post, then choose C for concrete or W for wood. Confirm the post model and mounting surface before ordering.

Does this kit anchor the post to the floor?

Yes. This KIN kit is for post-to-base anchoring. Separate compatible KIR brackets attach the rails to the post.

What material is the hardware?

This is metal installation hardware. The urethane newel post is ordered separately.

How does it ship?

Hardware ordered on its own typically ships UPS. An order that includes long rails ships LTL freight. Confirm the delivery requirements for your complete order.

Can I return it?

Please verify the kit number and fit before ordering. See the store return policy or contact us about your specific order.

Need help matching your hardware?

Send us your rail or post model and mounting surface.

800-986-1250sales@spectis.us

Compare hardware kits · Shop newel posts · Shop handrail systems

Builders, designers, and customers: if Spectis products or the installation steps are modified, you agree to indemnify, defend, and hold harmless Veritas Products LLC, veritasproducts.com, and spectis.us from any claimed loss or damage, regardless of other instructions.
