NP2207A 135° Angled HDP Urethane Newel Post – 5½″ Sides × 48″
- SKU:
- NP2207A
- MPN:
- NP 2207A
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date
- Width:
- 8.00 (in)
- Height:
- 8.00 (in)
- Depth:
- 5.50 (in)
- Shipping:
- Calculated at Checkout
Description

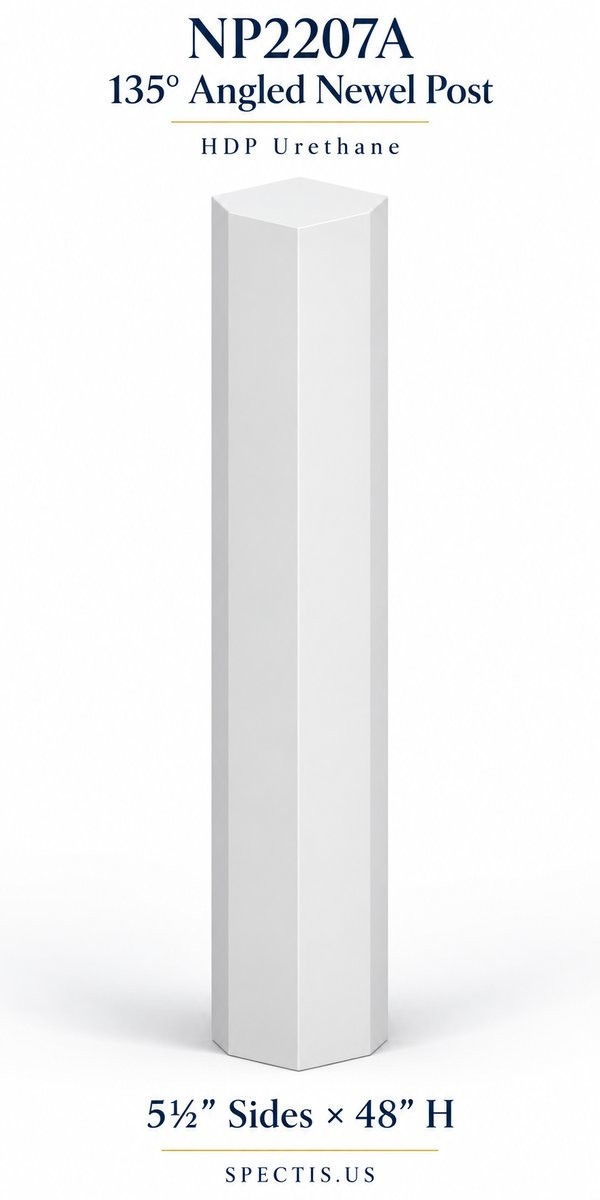

NP2207A 135° Angled Newel Post
The NP2207A angled newel post provides a clean connection point where your railing layout turns through a 135° corner. Its smooth faces and 5½-inch sides coordinate with the selected rail profile and matching cap. Made from high-density polyurethane (HDP urethane).
NP2207A at a glance
- Style
- 135° Angled
- Material
- HDP urethane
- Size
- 5½″ sides × 48″ H, with a 135° angle
- Finish
- Primed white
- Anchors
- KIN02-C / KIN02-W
- Cap
- Sold separately
- Production
- Made to order
Plan your order & delivery
Made for your project
NP2207A is made to order and cannot be returned. Confirm dimensions, configuration, finish, quantity, cap, and hardware before purchasing.
Orders with long rails
An order containing long rails ships by LTL freight. Shipping arrangements depend on the complete order.
Check the delivery address
LTL freight requires a verified commercial address accessible to a 52-foot trailer. A home-based business does not qualify. If the carrier classifies the address as residential, a $275 fee applies. You will receive a confirmation letter to correct the address or pay the additional freight.
Allow time for production
The current estimate is typically 2–3 weeks from the order date. Contact us before ordering if your project has a specific deadline.
Match the post & hardware
Two connections complete the assembly: an anchor kit secures the newel post to the mounting surface, and railing brackets connect the rails to the post.

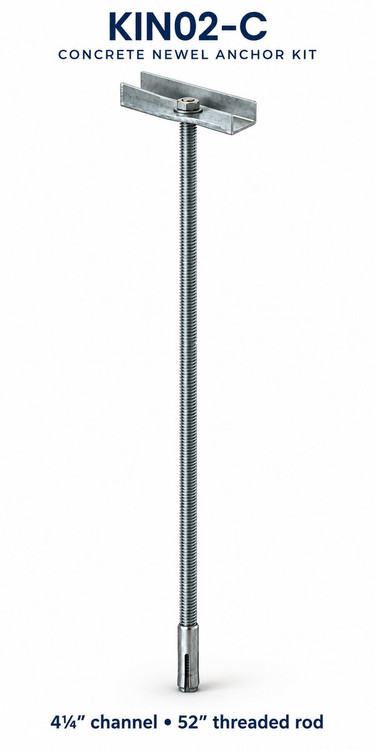

Concrete mounting
KIN02-C anchor kit
Choose this newel-post anchor kit for concrete.
Wood mounting
KIN02-W anchor kit
Choose this newel-post anchor kit for wood.
Rail-to-post connections
Use compatible railing brackets or L-brackets selected for your handrail profile. These are separate from the post anchoring hardware.
Complete the assembly
Coordinate your handrails, balusters, and newel cap. Confirm the post configuration and hardware before ordering.
How the rails connect
The L-brackets shown illustrate rail-to-post hardware. Choose the exact kit for your selected railing profile; bracket size and kit contents vary.
Check the fit

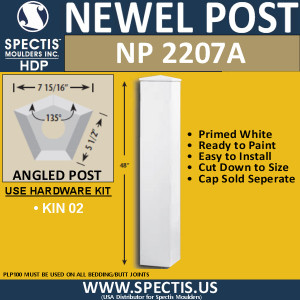

Check the 135° plan angle, 5½″ side lengths, and 48″ height. The drawing shows 7 15/16″ across the angled profile. Match the railing layout and the cap to this shape.
Compare the drawing with your railing layout before purchasing.
Installation & finishing
- Choose the correct post anchor for wood or concrete and follow the Spectis installation instructions.
- Attach the handrails using compatible railing brackets or L-brackets selected for the rail profile.
- Use PL Premium adhesive on all bedding and butt joints.
- Paint the primed surface promptly after installation. Adhesive and installation hardware are ordered separately.
Drawings & resources
Check the exact profile and dimensions before ordering. PDFs open in a separate tab.
Works with NP2207A — complete the look
Spectis parts made to go with this item, from the Spectis catalog and product drawings.
Each part is sold separately. Confirm profiles and dimensions against the drawings before ordering.
NP2207A FAQs
How do the rails attach to NP2207A?
Use compatible railing brackets or L-brackets to attach the handrails to the post. Select the bracket kit for the actual rail profile and follow Spectis installation instructions.
Which anchor kit fits NP2207A?
Use KIN02-C for concrete or KIN02-W for wood. These anchor kits secure the post to the mounting surface; rail attachment brackets are chosen separately.
What does the 135° angle mean?
NP2207A is designed for a 135° angled railing layout. Its 5½″ sides and 7 15/16″ overall plan width are shown on the product drawing. Confirm the footprint before ordering.
Is the cap included?
Newel caps are sold separately. Choose a cap that matches the size and shape of the post.
Does it need painting?
The post is supplied primed. Paint after installation following Spectis finishing instructions.
When will my order ship?
The current estimate is typically 2–3 weeks from the order date. Contact Spectis before ordering if your project has a specific deadline.
Can I return it?
This product is made to order and is non-returnable. Confirm the size, configuration, finish, cap, and hardware before purchasing.
What if it arrives damaged?
Inspect the shipment at delivery, notify the carrier immediately, and email sales@spectis.us the same day. Damage must be reported within 24 hours to qualify for a claim.
Need help matching the components?
Have your railing profile and part number NP2207A ready.
Builders, designers, and customers: if Spectis products or the installation steps are modified, you agree to indemnify, defend, and hold harmless Veritas Products LLC, veritasproducts.com, and spectis.us from any claimed loss or damage, regardless of other instructions.
