SPECTIS INSTALLATION HARDWAREKIN03-W Newel Post Anchor Kit for Wood – 5¼″ Channel
The Spectis KIN03-W anchor kit secures a compatible newel post to a wood mounting surface. It combines a 5¼-inch C-channel with a 52-inch threaded rod and a floor flange with wood screws.
SURFACEWoodPost-to-base anchoring
CHANNEL5¼″C-channel length
ROD LENGTH52″Threaded rod
ROD DIAMETER½″Match the post drawing
Kit contents & dimensions
| Component | Qty. | Specification |
|---|
| Floor flange | 1 | 2½″ square base |
| C-channel | 1 | 5¼″ L × 2″ W × 1″ H |
| Threaded rod | 1 | 52″ L × ½″ diameter |
| Wood screws | 4 | #14 × 2″ |
Specifications and quantities are from the KIN03-W manufacturer drawing. Product illustrations are for reference; use the drawing to confirm the part.
Match the hardware to your system
Compatible newel posts
KIN03 uses a 5¼″ channel. The catalog compatibility table does not identify its matching post models. Send us your newel model or drawing so we can confirm the fit before you order.
Choose the correct version
This is the wood mounting version. Check the specified kit number and channel size against the newel drawing; channel length alone does not establish compatibility.
For concrete mounting, see KIN03-C. Rail-to-post connections use a separate KIR bracket kit selected for the rail profile.

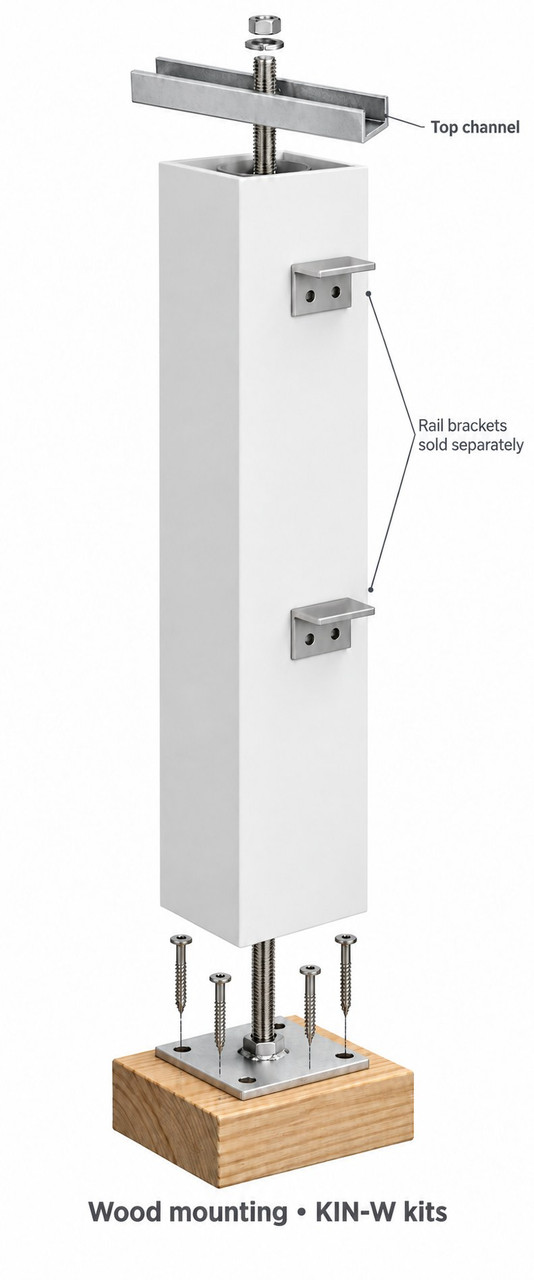

Wood mounting illustration
General wood mounting illustration. Refer to the KIN03-W manufacturer drawing for kit dimensions and the installation instructions for the complete assembly. Newel post and rail brackets are sold separately.
Installation planning
Plan the connection
Follow the Spectis instructions for the complete railing assembly and the mounting substrate. Confirm hardware placement, kit quantities, and any additional project-specific fasteners before ordering.
Complete the assembly
Order rails, balusters, newels, caps, and adhesive separately. Use the specified adhesive on bedding and butt joints in the surrounding Spectis components. Read the handrail installation notes.
Shipping
Hardware-only orders
A hardware kit on its own typically ships UPS. Shipping from Canada typically takes two to three weeks; confirm timing for your order.
Orders with long rails
Orders containing long rails ship LTL freight. Freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify.
Residential freight
If the carrier classifies the address as residential, a $275 fee is added. You receive a confirmation letter so you can correct the address or pay the extra freight.
Check the delivery
Inspect the shipment when it arrives and report damage to the carrier. Email sales@spectis.us the same day; the store requires notice within 24 hours for a damage claim.
Common questions
What is included?
The kit includes the hardware and quantities listed in the table above. Rails, balusters, newel posts, caps, and adhesive are sold separately.
How do I choose the correct kit?
Match the KIN number to the newel post, then choose C for concrete or W for wood. Confirm the post model and mounting surface before ordering.
Does this kit anchor the post to the floor?
Yes. This KIN kit is for post-to-base anchoring. Separate compatible KIR brackets attach the rails to the post.
What material is the hardware?
This is metal installation hardware. The urethane newel post is ordered separately.
How does it ship?
Hardware ordered on its own typically ships UPS. An order that includes long rails ships LTL freight. Confirm the delivery requirements for your complete order.
Can I return it?
Please verify the kit number and fit before ordering. See the store return policy or contact us about your specific order.
