RW24-DG Round Window — Diamond Grille – 24½″ Rough Opening
- SKU:
- RW24-DG
- MPN:
- RW24DG
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date
- Width:
- 24.00 (in)
- Height:
- 7.00 (in)
- Depth:
- 24.00 (in)
- Shipping:
- Calculated at Checkout
Description

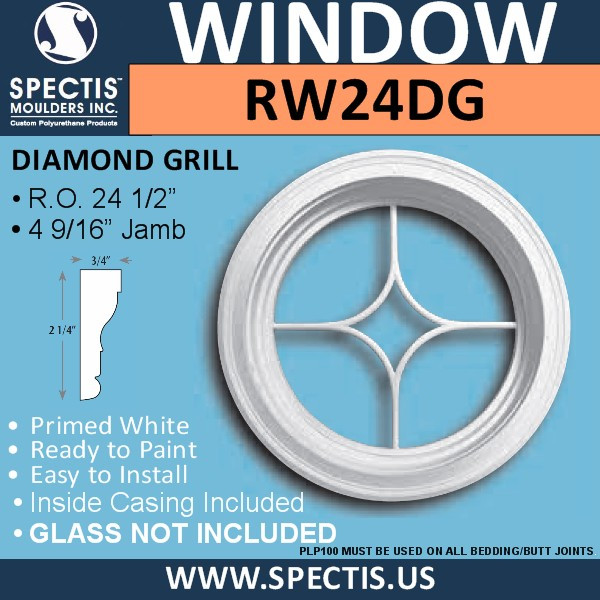

RW24-DG Round Window — Diamond Grille
A decorative round window frame with a curved diamond-pattern grille. Inside casing is included; glass is not included. Made from high-density polyurethane and supplied primed white for finish painting.
Dimensions & details
At a glance
- Model
- RW24-DG
- Outside diameter
- 27³⁄₁₆″
- Overall assembly depth
- 6¹⁵⁄₁₆″
- Rough opening (product reference)
- 24½″ diameter
- Jamb (product reference)
- 4⁹⁄₁₆″
- Includes
- Inside casing; grille as shown
- Glass
- Not included
- Drawing intermediate diameters
- 26⁵⁄₁₆″, 23⁹⁄₁₆″ and 22⁵⁄₁₆″
- Material
- High-density polyurethane
- Finish
- White primer; finish painting required
Size & fit
The 24-inch model name is nominal. The product reference specifies a 24½-inch-diameter rough opening and a 4⁹⁄₁₆-inch jamb. Confirm the jamb, wall thickness, casing overlap and glazing plan before framing or ordering. Glass is not included. The 24-inch model designation is nominal. Overall assembly size and section dimensions follow the individual drawing; confirm jamb requirements before ordering.
Installation & finishing
Installation
Dry-fit against a clean, prepared surface. Check alignment, clearances and the manufacturer drawing before fastening. Use ADH100 adhesive on all bedding and butt joints, together with the manufacturer’s specified nails or screws for the substrate. Adhesive and fasteners are sold separately. Coordinate flashing, sealing and any separate glazing with the window and wall installation requirements.
Finishing
Supplied primed white for finish painting. Prepare joints and fastener holes, then apply compatible finish paint following the manufacturer’s coating instructions. Coordinate exterior joints and weatherproofing with the wall assembly.
Drawings & resources
Shipping & ordering
Order timing
Typically Ships within 2-3 weeks from Order Date. Ships from Canada; confirm current timing before scheduling installation.
Parcel or freight
Smaller pieces typically ship UPS. Large pieces or combined orders may require LTL freight to a verified commercial address accessible to a 52-foot trailer. A home-based business does not qualify as a commercial delivery location.
Residential freight
If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter allows you to correct the address or arrange the extra freight.
Before you order
These products are made to order and are nonreturnable. Confirm the model, dimensions and installation requirements before purchasing.
Common questions
How do I confirm size and fit?
The 24-inch model name is nominal. The product reference specifies a 24½-inch-diameter rough opening and a 4⁹⁄₁₆-inch jamb. Confirm the jamb, wall thickness, casing overlap and glazing plan before framing or ordering. Glass is not included. The 24-inch model designation is nominal. Overall assembly size and section dimensions follow the individual drawing; confirm jamb requirements before ordering.
Is glass included?
No. Glass is not included. Inside casing is included; the selected model determines the grille pattern.
Is it ready to paint?
Supplied primed white for finish painting. Prepare joints and fastener holes, then apply compatible finish paint following the manufacturer’s coating instructions. Coordinate exterior joints and weatherproofing with the wall assembly.
How is it installed?
Dry-fit against a clean, prepared surface. Check alignment, clearances and the manufacturer drawing before fastening. Use ADH100 adhesive on all bedding and butt joints, together with the manufacturer’s specified nails or screws for the substrate. Adhesive and fasteners are sold separately. Coordinate flashing, sealing and any separate glazing with the window and wall installation requirements.
Can I return it?
Made-to-order products are nonreturnable. Confirm the size, profile and installation requirements before ordering.
Need help selecting your accent?
Send us the model, dimensions and project details.
