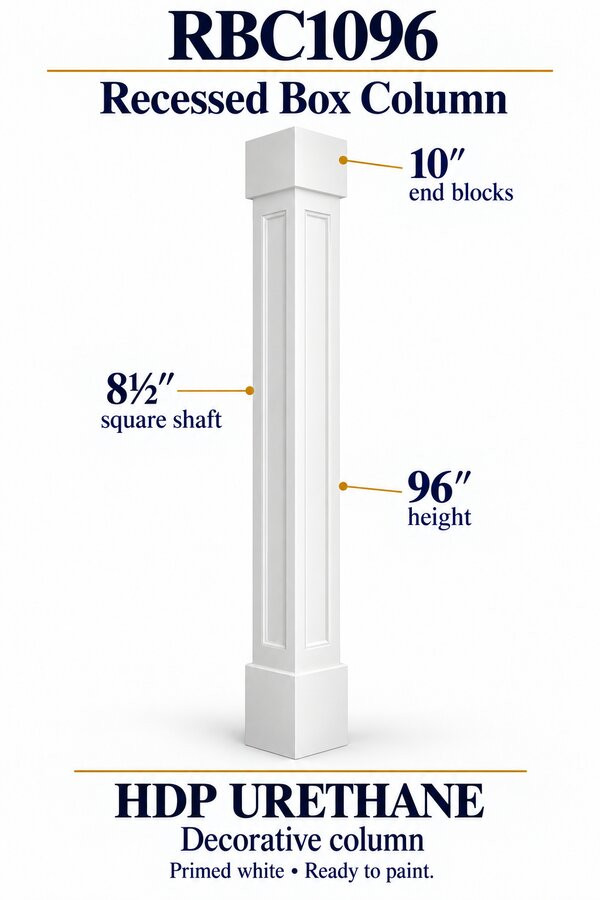

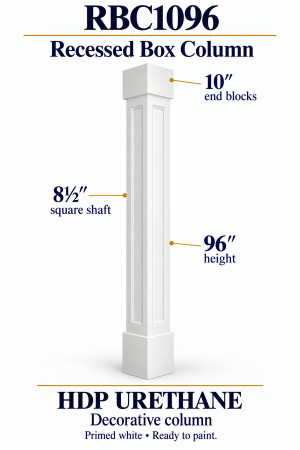

RBC1096 Recessed Box Decorative Column – 8½″ square shaft × 96″ H
- SKU:
- RBC1096
- MPN:
- RBC1096
- Condition:
- New
- Availability:
- Typically Ships within 2-3 weeks from Order Date
- Width:
- 10.00 (in)
- Height:
- 96.00 (in)
- Depth:
- 10.00 (in)
- Shipping:
- Calculated at Checkout
Description
RBC1096 Recessed Box Decorative Column
Long recessed panels and plain square end blocks create a restrained decorative box-column profile. Supplied primed white for painting.
Product illustration. Use the linked drawing for dimensions and assembly details.
RBC1096 at a glance
- Profile
- Recessed Box Decorative Column
- Dimensions
- 8½″ square shaft × 96″ H
- Material
- High-density polyurethane
- Finish
- Primed white; paint after installation
- Use
- Decorative, non-load-bearing column; use an independent support for structural loads.
- Included
- This listing is for the box-column profile shown. Check the drawing for trim and assembly details.
- Production
- Made to order
Plan your order & delivery
Made for your project
RBC1096 is made to order and cannot be returned. Confirm the profile, dimensions, configuration and quantity before purchasing.
LTL freight only
Columns and porch posts ship LTL freight only.
Delivery address
LTL freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify. If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter lets you correct the address or pay the extra freight.
How long
The order goes to the Spectis plant in Manitoba the same day. Shipping from Canada typically takes two to three weeks.
Check at delivery
Inspect the shipment on arrival and notify the carrier immediately of damage. Email sales@spectis.us the same day. Report damage within 24 hours for claim qualification.
Check the fit
The shaft is 8½″ square, with 10″ square end blocks and 96″ overall height. The drawing shows a 9″-high top block, a 16″-high lower block and a 60″ recessed panel. Maximum internal member sizes shown are 5½″ round or 3⅞″ square.
The drawing identifies a four-piece molded assembly shipped as one. Confirm any requested split configuration when ordering.
Split-column option
This decorative column can be cut lengthwise into two halves to fit around an existing post or beam, then joined back together on site with ADH100 adhesive. Factory cutting is available for an additional $40 per column. Check the model drawing for internal clearance before ordering. This service is for decorative columns only; structural columns must not be split.
Installation & finishing
- Check the mounting space and existing support before fitting the column. Set it plumb; decorative columns do not carry building loads.
- Use ADH100 adhesive on every bedding face and butt joint.
- Follow the manufacturer instructions for fastening, joints and finishing. Paint after installation. Adhesive, finish and additional installation fasteners are sold separately.
Drawings & resources
Check the model-specific drawing before ordering. PDFs open in a separate tab.
Spectis catalogueRBC1096 FAQs
What size is RBC1096?
The shaft is 8½″ square, with 10″ square end blocks and 96″ overall height. The drawing shows a 9″-high top block, a 16″-high lower block and a 60″ recessed panel. Maximum internal member sizes shown are 5½″ round or 3⅞″ square.
Is this column load-bearing?
Decorative, non-load-bearing column; use an independent support for structural loads.
What is included?
This listing is for the box-column profile shown. Check the drawing for trim and assembly details.
What is it made of?
High-density polyurethane (HDP urethane), supplied primed white for painting.
What should I check before ordering?
The drawing identifies a four-piece molded assembly shipped as one. Confirm any requested split configuration when ordering.
Can this decorative column be split?
This decorative column can be cut lengthwise into two halves to fit around an existing post or beam, then joined back together on site with ADH100 adhesive. Factory cutting is available for an additional $40 per column. Check the model drawing for internal clearance before ordering. This service is for decorative columns only; structural columns must not be split.
Which adhesive and finish should I use?
Use ADH100 adhesive on every bedding face and butt joint. Follow the manufacturer's fastening and finishing instructions, and paint after installation. Adhesive, finish and additional installation fasteners are sold separately.
Can I return it?
No. This product is made to order. Confirm the profile, dimensions, configuration and quantity before purchasing.
How does it ship?
Columns and porch posts ship LTL freight only. LTL freight requires a verified commercial address accessible to a 52-foot trailer. A house with a business in it does not qualify. If the carrier classifies the address as residential, a $275 fee is added. A confirmation letter lets you correct the address or pay the extra freight. Orders go to the Spectis plant in Manitoba the same day. Shipping from Canada typically takes two to three weeks.
What if it arrives damaged?
Inspect at delivery and notify the carrier immediately. Email sales@spectis.us the same day. If Spectis is not notified within 24 hours, the items cannot qualify for a claim.
Need help checking the fit?
Have your measurements and part number RBC1096 ready. Weekdays, 8 a.m. to 6 p.m. Eastern.
Builders, designers, and customers: if Spectis products or the installation steps are modified, you agree to indemnify, defend, and hold harmless Veritas Products LLC, veritasproducts.com, and spectis.us from any claimed loss or damage, regardless of other instructions.
